TWIN-ROLLERS SERIES

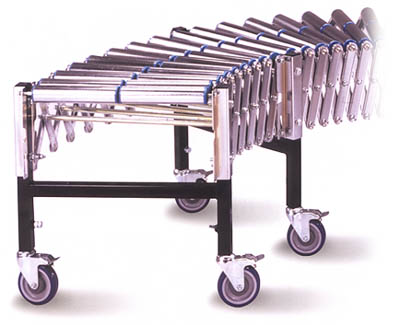

Gravity Twin-Roller Conveyor






Power Twin-Roller Conveyor





雙列式重型無動力滾筒伸縮輸送機

Model Code

Total Loading (Kg/Unit)

Width (m/m)

Standard Lengths Range (m/m)

Standard Height Range (m/m)

Max. Pitch (m/m)

Leg Sets
per Unit

Approx. Shipping
Weight (kg)

KTY-500TGH-3

80

500

1425~3375

650~800

145

4

90

KTY-500TGH-4

120

500

1900~4500

650~800

145

5

120

KTY-500TGH-5

160

500

2375~5625

650~800

145

6

150

KTY-600TGH-3

80

600

1425~3375

650~800

145

4

96

KTY-600TGH-4

120

600

1900~4500

650~800

145

5

128

KTY-600TGH-5

160

600

2375~5625

650~800

145

6

160

KTY-700TGH-3

80

700

1425~3375

650~800

145

4

102

KTY-700TGH-4

120

700

1900~4500

650~800

145

5

136

KTY-700TGH-5

160

700

2375~5625

650~800

145

6

170

There are two choices of the height range for TGH series. 1. 650~800 m/m 2. 750~900 m/m Please signify the height range customer prefer when order is made.



雙列式輕型無動力滾筒伸縮輸送機

Model Code

Total Loading (Kg/Unit)

Width (m/m)

Standard Lengths Range (m/m)

Standard Height Range (m/m)

Max. Pitch (m/m)

Leg Sets
per Unit

Approx. Shipping
Weight (kg)

KTY-400TGL-3

60

400

1275~3375

650~950

145

4

75

KTY-400TGL-4

80

400

1700~4500

650~950

145

5

100

KTY-400TGL-5

100

400

2125~5625

650~950

145

6

125

KTY-500TGL-3

60

500

1275~3375

650~950

145

4

78

KTY-500TGL-4

80

500

1700~4500

650~950

145

5

104

KTY-500TGL-5

100

500

2125~5625

650~950

145

6

130

KTY-600TGL-3

60

600

1275~3375

650~950

145

4

81

KTY-600TGL-4

80

600

1700~4500

650~950

145

5

128

KTY-600TGL-5

100

600

2125~5625

650~950

145

6

135



Power twin-roller 雙列式重型動力滾筒伸縮輸送機

Model Code

Total Loading (Kg/Unit)

Width (m/m)

Standard Lengths Range (m/m)

Standard Height Range (m/m)

Max. Pitch (m/m)

Leg Sets
per Unit

Approx. Shipping
Weight (kg)

KTY-500TPH-3

80

500

1425~3375

650~800

145

4

96

KTY-500TPH-4

120

500

1900~4500

650~800

145

5

128

KTY-500TPH-5

160

500

2375~5625

650~800

145

6

160

KTY-600TPH-3

80

600

1425~3375

650~800

145

4

105

KTY-600TPH-4

120

600

1900~4500

650~800

145

5

140

KTY-600TPH-5

160

600

2375~5625

650~800

145

6

175

KTY-700TPH-3

80

700

1425~3375

650~800

145

4

114

KTY-700TPH-4

120

700

1900~4500

650~800

145

5

152

KTY-700TPH-5

160

700

2375~5625

650~800

145

6

190

There are two choices of the height range for TPH series. 1. 650~800 m/m 2. 750~900 m/m Please signify the height range customer prefer when order is made.



雙列式輕型動力滾筒伸縮輸送機

Model Code

Total Loading (Kg/Unit)

Width (m/m)

Standard Lengths Range (m/m)

Standard Height Range (m/m)

Max. Pitch (m/m)

Leg Sets
per Unit

Approx. Shipping
Weight (kg)

KTY-400TPL-3

60

400

1425~3375

650~950

145

4

90

KTY-400TPL-4

80

400

1900~4500

650~950

145

5

120

KTY-400TPL-5

100

400

2375~5625

650~950

145

6

150

KTY-500TPL-3

60

500

1425~3375

650~950

145

4

96

KTY-500TPL-4

80

500

1900~4500

650~950

145

5

128

KTY-500TPL-5

100

500

2375~5625

650~950

145

6

160

KTY-600TPL-3

60

600

1425~3375

650~950

145

4

102

KTY-600TPL-4

80

600

1900~4500

650~950

145

5

136

KTY-600TPL-5

100

600

2375~5625

650~950

145

6

170
