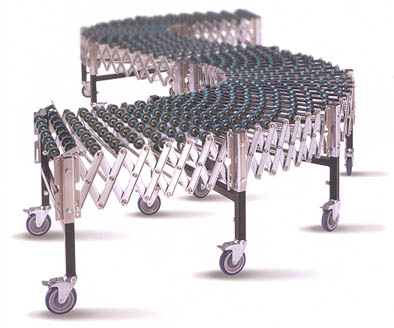

Gravity Wheel Conveyor Power Wheel Conveyor

重型無動力福來輪伸縮輸送機

Model Code	Total Loading (Kg/Unit)	Width (m/m)	Standard Lengths Range (m/m)	Standard Height Range (m/m)	Mkate Wheels Per Axle	Leg Sets per Unit	Approx. Shipping Weight (kg)
KTY-500WGH-3	80	500	935~3375	650~800	5 x 6	4	75
KTY-500WGH-4	120	500	1250~4500	650~800	5 x 6	5	100
KTY-500WGH-5	160	500	1560~5625	650~800	5 x 6	6	125
KTY-600WGH-3	80	600	935~3375	650~800	6 x7	4	81
KTY-600WGH-4	120	600	1250~4500	650~800	6 x7	5	108
KTY-600WGH-5	160	600	1560~5625	650~800	6 x7	6	135
KTY-700WGH-3	80	700	1185~3375	650~800	7 x 8	4	87
KTY-700WGH-4	120	700	1500~4500	650~800	7 x 8	5	116
KTY-700WGH-5	160	700	1810~5625	650~800	7 x 8	6	145
There are two choices of the height range for WGH series. 1. 650~800 m/m 2. 750~900 m/m Please signify the height range customer prefer when order is made.

輕型無動力福來輪伸縮輸送機

Model Code	Total Loading (Kg/Unit)	Width (m/m)	Standard Lengths Range (m/m)	Standard Height Range (m/m)	Mkate Wheels Per Axle	Leg Sets per Unit	Approx. Shipping Weight (kg)
KTY-400WGL-3	60	400	935~3375	650~950	4 x 5	4	60
KTY-400WGL-4	80	400	1250~4500	650~950	4 x 5	5	80
KTY-400WGL-5	100	400	1560~5625	650~950	4 x 5	6	100
KTY-500WGL-3	60	500	935~3375	650~950	5 x 6	4	63
KTY-500WGL-4	80	500	1250~4500	650~950	5 x 6	5	84
KTY-500WGL-5	100	500	1560~5625	650~950	5 x 6	6	105
KTY-600WGL-3	60	600	935~3375	650~950	6 x 7	4	66
KTY-600WGL-4	80	600	1250~4500	650~950	6 x 7	5	88
KTY-600WGL-5	100	600	1560~5625	650~950	6 x 7	6	110

Power wheel 重型動力福來輪伸縮輸送機

Model Code	Total Loading (Kg/Unit)	Width (m/m)	Standard Lengths Range (m/m)	Standard Height Range (m/m)	Mkate Wheels Per Axle	Leg Sets per Unit	Approx. Shipping Weight (kg)
KTY-500WPH-3	80	500	1425~3375	650~800	5 x 6	4	90
KTY-500WPH-4	120	500	1900~4500	650~800	5 x 6	5	120
KTY-500WPH-5	160	500	2375~5625	650~800	5 x 6	6	150
KTY-600WPH-3	80	600	1425~3375	650~800	6 x7	4	93
KTY-600WPH-4	120	600	1900~4500	650~800	6 x7	5	124
KTY-600WPH-5	160	600	2375~5625	650~800	6 x7	6	155
KTY-700WPH-3	80	700	1425~3375	650~800	7 x 8	4	96
KTY-700WPH-4	120	700	1900~4500	650~800	7 x 8	5	128
KTY-700WPH-5	160	700	2375~5625	650~800	7 x 8	6	160
There are two choices of the height range for WGH series. 1. 650~800 m/m 2. 750~900 m/m Please signify the height range customer prefer when order is made.
